Securtrac Ortho Bed Traction System

Clinic pricing & trial: This is professional clinic equipment. For clinic pricing, a quote, or to arrange a demonstration, call 02 9878 6188 (Mon–Fri 9:30am–4:30pm AEST) or email sales@totalpatientcare.com.au. You can also order online.

SecurTrac Ortho Bed Traction System

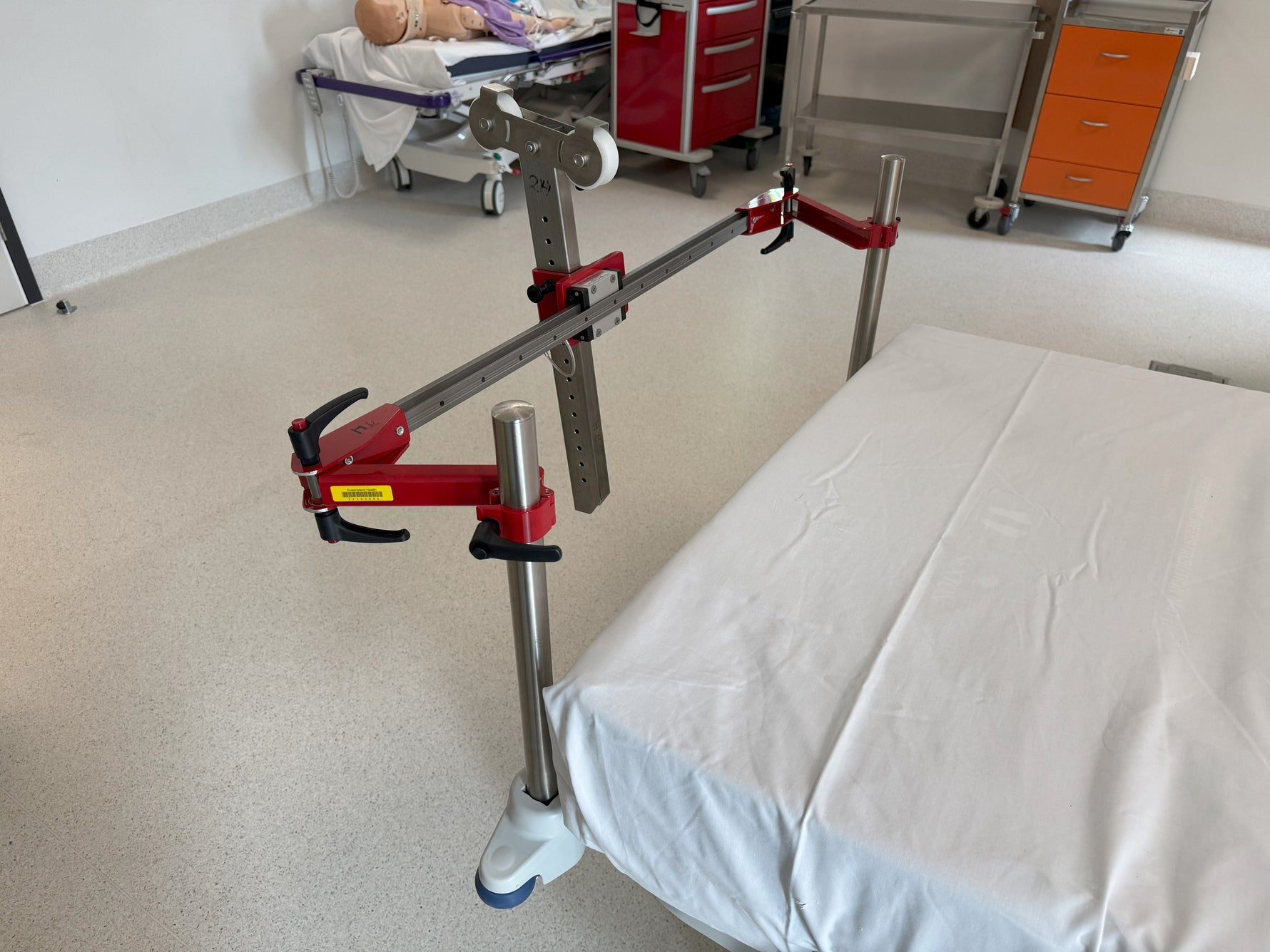

The SecurTrac Ortho Bed Traction System is a static traction device, allowing a specific applied traction force for the neck, lumbar or leg areas.

The SecurTrac comes in at under 6kg, folds and is easy to store. Applicable to beds with either 25mm or 32mm post hole. Custom post hole sizes available on request. Set up within minutes. Can be set up easily by one person, in preparation for the client to be fitted with a traction garment or bandage.

Features

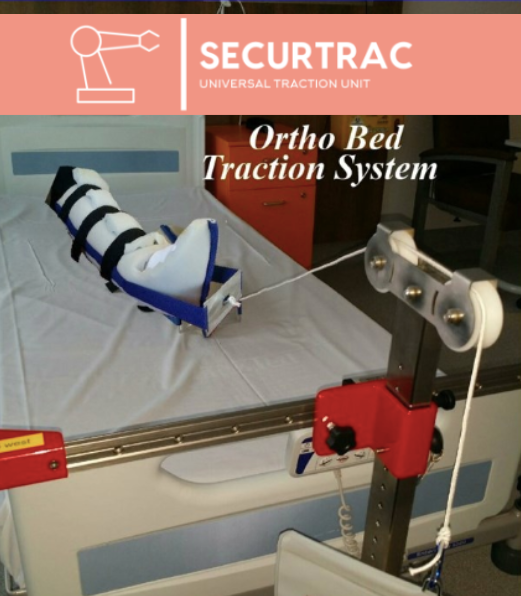

A traction force is applied using a water weight bag or other weight and a suitable garment/bandage.

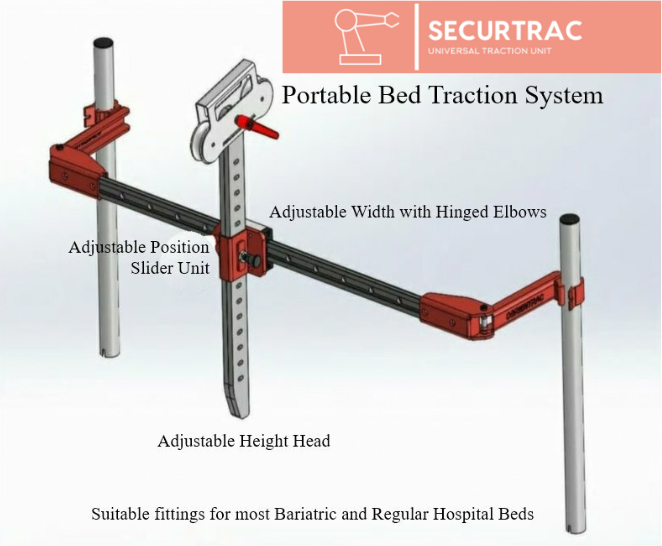

• Vertical and horizontal positioning is available for best placement of traction force.
• The system features a unique hinged system that allows attachment to both standard and bariatric hospital beds.
• The hinge system does not compromise the use of an alternating air mattress on the bed.
• This device allows provision for the ideal management of patients with femoral fractures pre and post operative.
• Bucks Traction Boots are available to enhance the treatment management.
• Bucks Traction Boots reduce the costs for patients who require 3 days plus in traction as opposed to the bandage.

Specifications

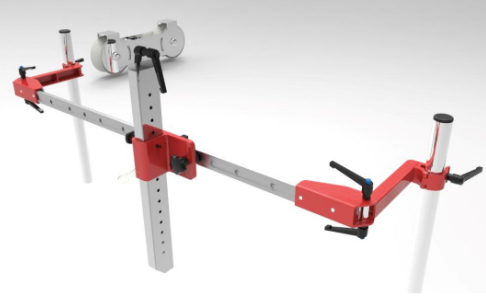

• Adjustable width, post to post 750mm to 1050mm.
• Suits standard width and bariatric beds.
• Post height adjustable using post clamping system.
• Vertical traction post height adjustable, multiple positions.
• Vertical traction post has positive position location.
• Vertical traction post has a safety clip to provide greater safety for positive height adjustment.

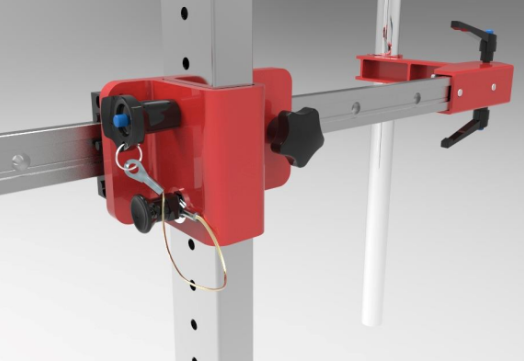

• Vertical traction post is easily positioned along the horizontal bar using a positive lock slider mechanism.
• No tools required.
• Weight 5.9kg.
• Custom post hole sizes available on request.

CLICK to download the full instruction manual.

Accessories

Our water weight bag has a safe working limit (SWL) of 20lbs (9.09kg); the overall weight on the traction system should not exceed 40lbs (18.18kg).

The traction cord we have available is rated with a high tensile strength many times in excess of the SWL of the weight bag. This is available as a separate product or a 3m length with purchase of a Bucks Traction Boot.

Please refer to your physician for the prescribed weight application to suit the specific purpose.
